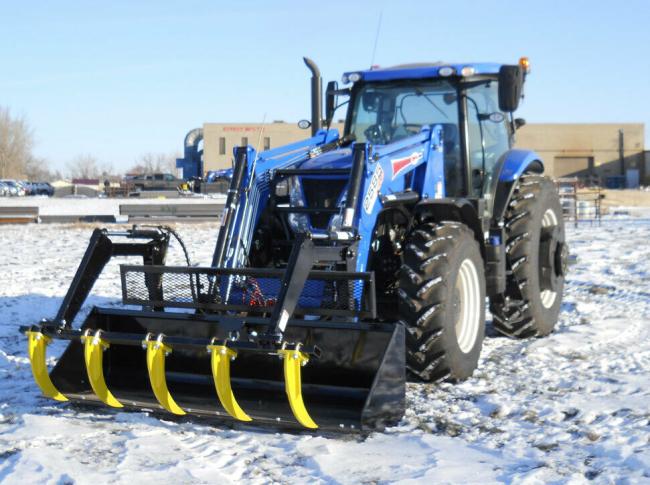

Koyker 2585 PRO Loader
Pro Loaders
Your Preferred Location
Specification
| DESCRIPTION OF EQUIPMENT RATED | |
| Loader Model | Koyker Pro 2585 |
| Bucket | 679236 |
| Width (inches) | 8' 1" |
| Depth (inches) | 2' 7" |
| Height (inches) | 2' 8" |
| Length (inches) | 3' 5" |
| Bucket Weight (pounds) | 850 |
| Capacity | 37ft^3 |
| Bucket Control | Dual |
| Tractor Model | DNA |
| Tires | DNA |
| Wheelbase | DNA |
| Hydraulic System | DNA |
| Rated Flow | 25 GPM |
| Maximum Pressure | 2560 |
| Lift Cylinder Dia. (inches) | 3 1/4 |
| Attachment Dia. (inches) | 3 1/4 |
| Tractor HP Range | 90-180 |
| Dimensional Specifications | |
| Lift Height | 13' 9" |
| Lift Height under level bucket | 12' 11" |
| Clearance with bucket dumped | 10' 8" |
| Reach at max. lift height | DNA |
| Max. dump angle | 46 |
| Reach with bucket on ground | DNA |
| Max. rollback angle | 34 |
| Digging depth | 7" |
| Overall height in carry position | 7' 2" |
| Mount height | 5' 3" |
| Operational Specifications | |
| Lift Capacity to max. ht. @ pivot pin | 5015 |
| Lift capacity to max. height (31.5) | 3491 |
| Lift capacity to max. height (19.7) | DNA |
| Lift capacity to 59" ht. @ pivot pin | 6055 |
| Lift capacity to 59" height (31.5) | 4727 |
| Breakout force @ pivot pin | 6776 |
| Breakout force | 5039 |
| Bucket rollback force @ maximum ht. | 7424 |
| Bucket rollback force @ 59" lift ht. | 10834 |
| Bucket rollback force @ ground line | 4624 |
| Raising Time | 4.8 |
| Lowering Time | 3.4 |
| Bucket Dumping Time | 4.2 |
| Bucket Rollback Time | 3 |
