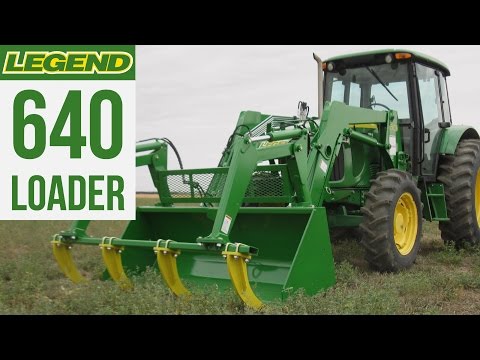

Koyker 640 Legend Loader

Legend Loaders

Your Preferred Location

The 640 is a premier product that is the front-end loader solution to fit the following JD series tractors:

6000 Series: 6110, 6120, 6130, 6200, 6210, 6215, 6220, 6230, 6300, 6310, 6320, 6330, 6400, 6405, 6410, 6415, 6420, 6430 Utility Series: 2350, 2355, 2550, 2555, 2750, 2755

FEATURES:

2 bucket sizes available.
Both self-leveling & non self-leveling available.
Quick attach mounting.
Parts are interchangeable with JD parts
Grade 50 steel
Meets or exceeds OEM standards
Solid knee joint strength
Fast attaching buckets
Easy on/off attachments
Self-storing parking stands

Buy cylinder parts at farmequipparts.com

The 640 is a premier product that is the front-end loader solution to fit the following JD series tractors:

6000 Series: 6110, 6120, 6130, 6200, 6210, 6215, 6220, 6230, 6300, 6310, 6320, 6330, 6400, 6405, 6410, 6415, 6420, 6430 Utility Series: 2350, 2355, 2550, 2555, 2750, 2755

FEATURES:

2 bucket sizes available.
Both self-leveling & non self-leveling available.
Quick attach mounting.
Parts are interchangeable with JD parts
Grade 50 steel
Meets or exceeds OEM standards
Solid knee joint strength
Fast attaching buckets
Easy on/off attachments
Self-storing parking stands

Buy cylinder parts at farmequipparts.com

Downloads & Documentation
Details

Specification

640 Self-Leveling Specifications:

Maximum lift height: 146”
Digging depth: 7”
Roll-back angle at ground level: 38 degrees
Dump angle at maximum height: 80 degrees
Lift & breakout capacity: Rated at 17.5 gpm/2500 psi
Breakout force at pivot pin: 5,890 lbs.
Lift capacity to full height at pivot pin: 3,410 lbs.

640 Non Self-Leveling Specifications:

Maximum lift height: 146”
Digging depth: 7”
Roll-back angle at ground level: 15 degrees
Dump angle at maximum height: 39 degrees
Lift & breakout capacity:
Rated at 17.5 gpm/2500 psi
Breakout force at pivot pin: 5,800 lbs.
Lift capacity to full height at pivot pin: 3,300 lbs.

Downloads & Documentation
Links
Details

Specification

640 Self-Leveling Specifications:

Maximum lift height: 146”
Digging depth: 7”
Roll-back angle at ground level: 38 degrees
Dump angle at maximum height: 80 degrees
Lift & breakout capacity: Rated at 17.5 gpm/2500 psi
Breakout force at pivot pin: 5,890 lbs.
Lift capacity to full height at pivot pin: 3,410 lbs.

640 Non Self-Leveling Specifications:

Maximum lift height: 146”
Digging depth: 7”
Roll-back angle at ground level: 15 degrees
Dump angle at maximum height: 39 degrees
Lift & breakout capacity:
Rated at 17.5 gpm/2500 psi
Breakout force at pivot pin: 5,800 lbs.
Lift capacity to full height at pivot pin: 3,300 lbs.
