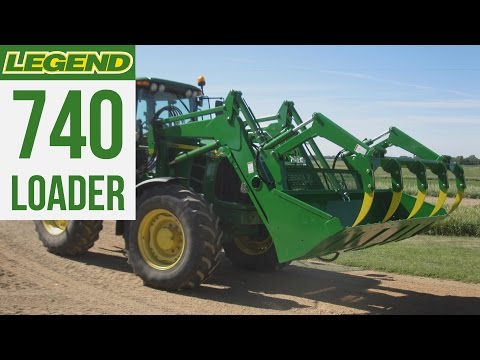

Koyker 740 Legend Loader

Legend Loaders

Your Preferred Location

The 740 is a premier product that is the front-end loader solution to fit the following JD series tractors:

4040, 4050, 4055, 4230, 4240, 4250, 4255, 4350, 4430, 4440, 4450, 4455, 4630, 2940, 2950, 2955, 3055, 3130, 3140, 3150, 3155, 3255, 6605, 7200, 7210, 7400, 7405, 7410, 7510, 7600, 7610, 7700, 7710, 7800, 7810, 6615, 6715, 7130, 7220, 7230, 7320, 7330, 7420, 7430, 7520

FEATURES:

Self-leveling (non self-leveling model available)
Quick attach mounting
Parts are interchangeable with JD parts
Grade 50 steel
Meets or exceeds OEM standards
Solid knee joint strength
Fast attaching buckets
Easy on/off attachments
Self-storing parking stands
Optional plumbing kit available. Valve is mounted under the tractor with the joystick mounted on a convenient stand in the cab for easy operator use.

Buy Cylinder Parts at farmequipparts.com

The 740 is a premier product that is the front-end loader solution to fit the following JD series tractors:

FEATURES:

Self-leveling (non self-leveling model available)
Quick attach mounting
Parts are interchangeable with JD parts
Grade 50 steel
Meets or exceeds OEM standards
Solid knee joint strength
Fast attaching buckets
Easy on/off attachments
Self-storing parking stands
Optional plumbing kit available. Valve is mounted under the tractor with the joystick mounted on a convenient stand in the cab for easy operator use.

Buy Cylinder Parts at farmequipparts.com

Downloads & Documentation
Details

Specification

740 Self Leveling Specifications:

Maximum lift height: 14’ 1”
Digging depth: 12”
Roll-back angle at ground level: 40 degrees
Dump angle at maximum height: 70 degrees
Reach at ground level: 8’ 2”
Breakout force at pivot pin: 7,647 lbs.
Lift capacity to full height at pivot pin: 4,083 lbs.

740 Non Self Leveling Specifications:

Maximum lift height: 13’ 8”
Digging depth: 10”
Roll-back angle at ground level: 29 degrees
Dump angle at maximum height: 45 degrees
Reach at ground level: 8’ 2”
Breakout force at pivot pin: 8,171 lbs.
Lift capacity to full height at pivot pin: 4,193 lbs.

Downloads & Documentation
Links
Details

Specification

740 Self Leveling Specifications:

Maximum lift height: 14’ 1”
Digging depth: 12”
Roll-back angle at ground level: 40 degrees
Dump angle at maximum height: 70 degrees
Reach at ground level: 8’ 2”
Breakout force at pivot pin: 7,647 lbs.
Lift capacity to full height at pivot pin: 4,083 lbs.

740 Non Self Leveling Specifications:

Maximum lift height: 13’ 8”
Digging depth: 10”
Roll-back angle at ground level: 29 degrees
Dump angle at maximum height: 45 degrees
Reach at ground level: 8’ 2”
Breakout force at pivot pin: 8,171 lbs.
Lift capacity to full height at pivot pin: 4,193 lbs.
